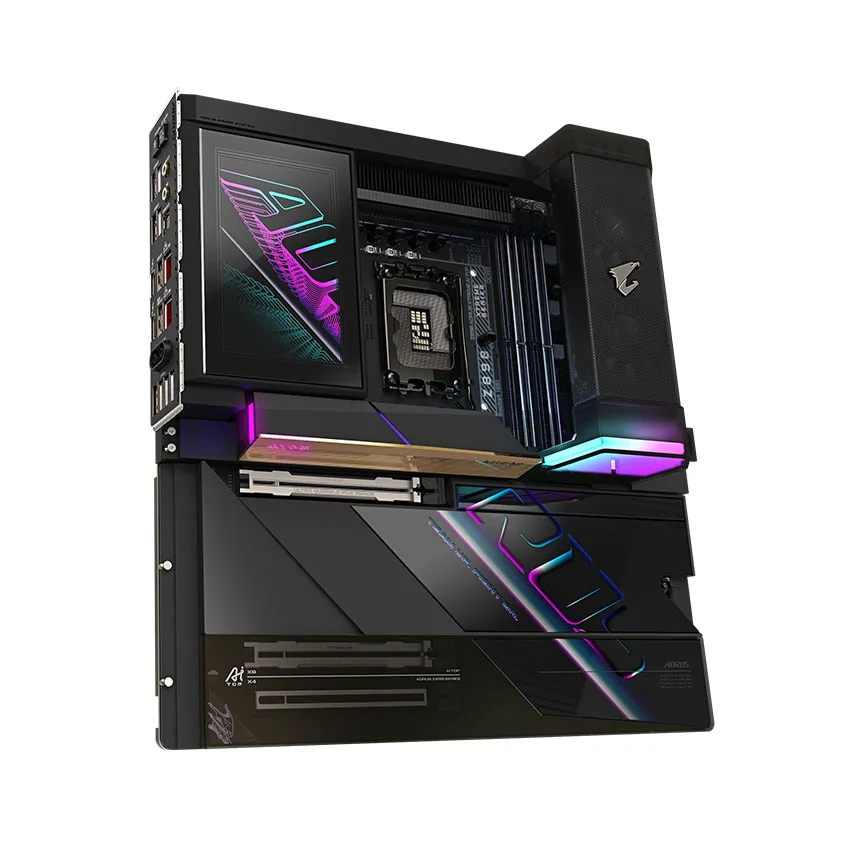

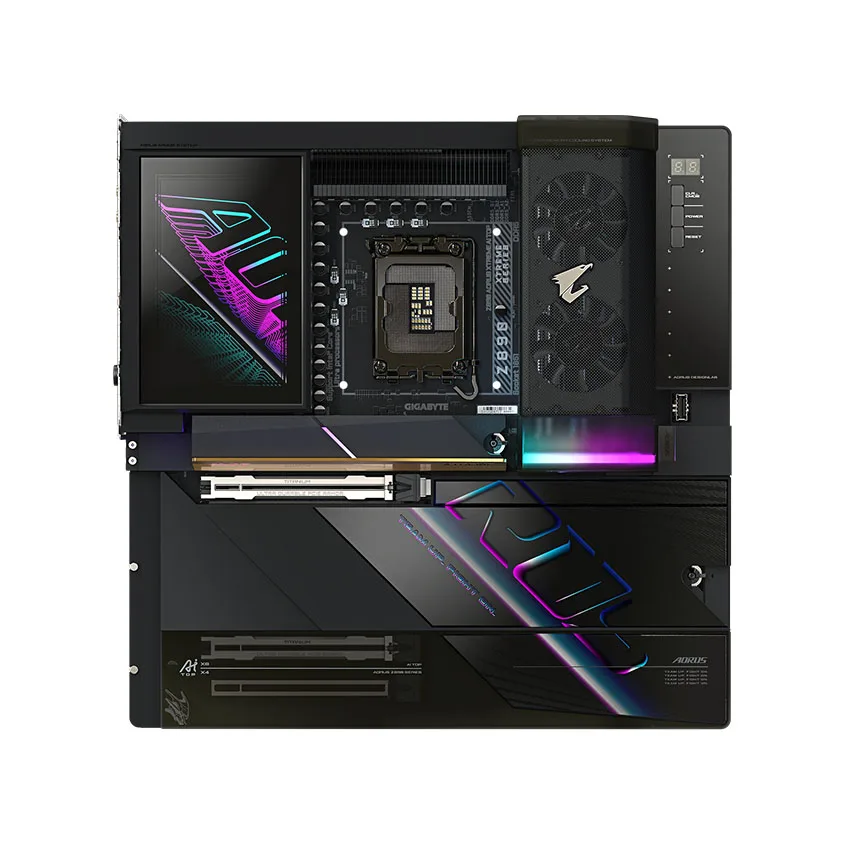

Đánh giá chi tiết Mainboard Gigabyte Z890 AORUS XTREME AI TOP
Đánh giá chi tiết Mainboard Gigabyte Z890 AORUS XTREME AI TOP
Socket: LGA1851 socket - Support for Intel® Core™ Ultra Processors. Kích thước: E-ATX. Khe cắm RAM: 4 khe (Tối đa 256GB). Khe cắm mở rộng: 1 x PCI Express x16 slot, 1 x PCI Express x16 slot, 1 x PCI Express x16 slot.
Đặc điểm & Thông số nổi bật
- Chipset: Intel® Z890 Express Chipset
- RAM hỗ trợ: Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modulesSupport CUDIMM memory module
- Khe cắm mở rộng: CPU:- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.* The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. Chipset:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
- Ổ cứng hỗ trợ: CPU:- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)Chipset:- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2M_SB)- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2L_SB)- 4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
- Cổng kết nối (Internal): 1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x CPU fan/water cooling pump header1 x system fan header1 x system fan extension cable header (can extend three system fan headers through one cable)1 x system fan/water cooling pump extension cable header (can extend three system fan/water cooling pump headers through one cable)1 x noise detection header1 x integrated extension cable header for addressable RGB Gen2 LED strips and RGB LED strips (can extend four addressable RGB Gen2 LED strip headers and one RGB LED strip header through one cable)4 x SATA 6Gb/s connectors4 x M.2 Socket 3 connectors1 x front panel header1 x Thunderbolt™ 4 (Note) connector (USB4® USB Type-C® port)2 x USB Type-C® headers, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 1 header1 x integrated extension cable header for system fan/water cooling pump and USB 2.0/1.1 headers (can extend one system fan/water cooling pump header and two USB 2.0/1.1 headers through one cable)1 x power button1 x reset button1 x Clear CMOS button2 x temperature sensor headers

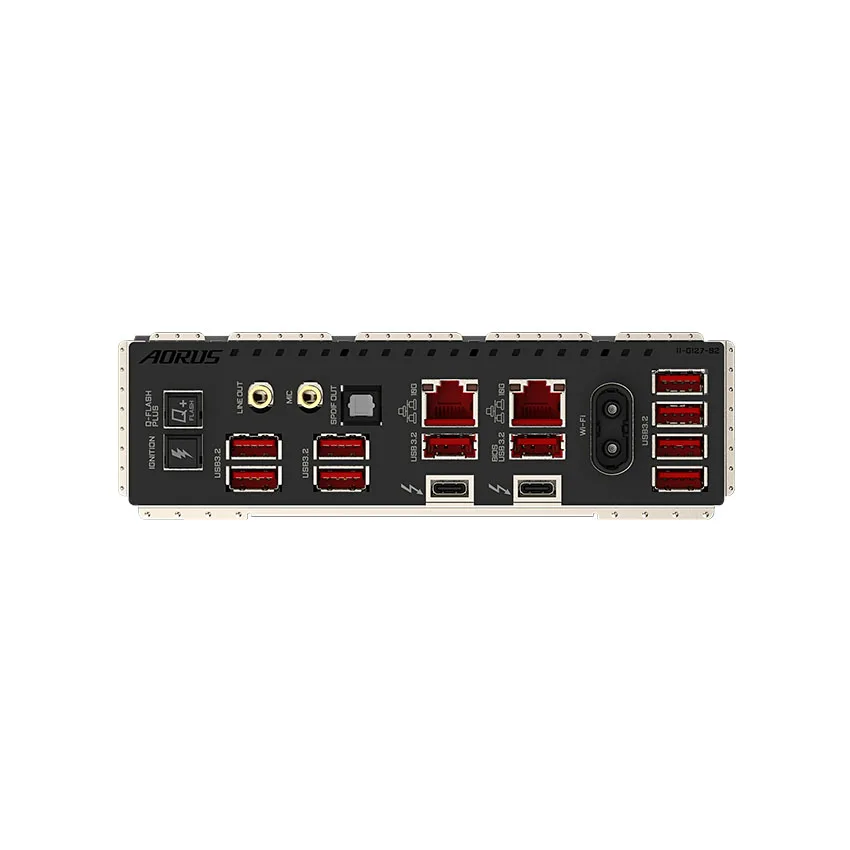

- Cổng kết nối (Back Panel): 1 x Q-Flash Plus button1 x OC Ignition button2 x Intel® Thunderbolt™ 5(Note) connectors (USB Type-C® ports)10 x USB 3.2 Gen 2 Type-A ports (red)2 x RJ-45 ports2 x antenna connectors (2T2R)2 x audio jacks1 x optical S/PDIF Out connector
- LAN / Wireless: 2 x Marvell® AQtion AQC113C 10GbE LAN chips (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/ 100 Mbps) Intel® Wi-Fi 7 BE200NGW- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.4- Support for 11be 320MHz wireless standard
- USB: Chipset+Intel® Thunderbolt™ 5 Controller:- 2 x Intel® Thunderbolt™ 5 (USB Type-C®) ports on the back panel*Support up to 80Gbps with Thunderbolt devices*Support up to 40Gbps with USB4 devices*Support up to 20Gbps with USB 3.2 devicesCPU:- 1 x USB4® USB Type-C® port onboard- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB headerChipset:- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header- 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panelChipset+1 USB 3.2 Gen 2 Hub:- 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panelChipset+1 USB 3.2 Gen 1 Hub:- 2 x USB 3.2 Gen 1 ports available through the internal USB headerChipset+1 USB 2.0 Hub:- 4 x USB 2.0/1.1 ports available through the internal USB headers
Sản phẩm đang được phân phối chính hãng tại hệ thống showroom TITAN PC với chính sách đổi mới 30 ngày và hỗ trợ trả góp 0% lãi suất.
