settings_suggest Thông số kỹ thuật chi tiết
|
| CPU |
AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 Series Processors |
| Chipset |
AMD B650 |
| Bộ nhớ |
– Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules– 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory– Dual channel memory architecture– Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules– Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Card đồ họa tích hợp |
Integrated Graphics Processor:– 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz* Support for DisplayPort 1.4 version and HDR.– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports. |
| Âm thanh |
Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out |
| LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module |
Realtek® Wi-Fi 6E RTL8852CE– WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands– BLUETOOTH 5.3– Support for 11ax 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.) |
| Khe cắm mở rộng |
CPU:– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Giao diện lưu trữ |
– CPU:1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)* Actual support may vary by CPU.1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)– Chipset:4 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB |
CPU:– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support– 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panelCPU + USB 2.0 Hub:– 4 x USB 2.0/1.1 ports on the back panelChipset:– 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header– 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)– 4 x USB 2.0/1.1 ports available through the internal USB headersChipset+USB 3.2 Gen 1 Hub:– 4 x USB 3.2 Gen 1 ports on the back pane |
| Kết nối I/O bên trong |
1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x CPU fan/water cooling pump header3 x system fan headers1 x system fan/water cooling pump header2 x addressable LED strip headers2 x RGB LED strip headers1 x CPU cooler LED strip/RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2×2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x serial port header1 x THB_U4 add-in card connector1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)1 x reset button1 x reset jumper1 x Clear CMOS jumper |

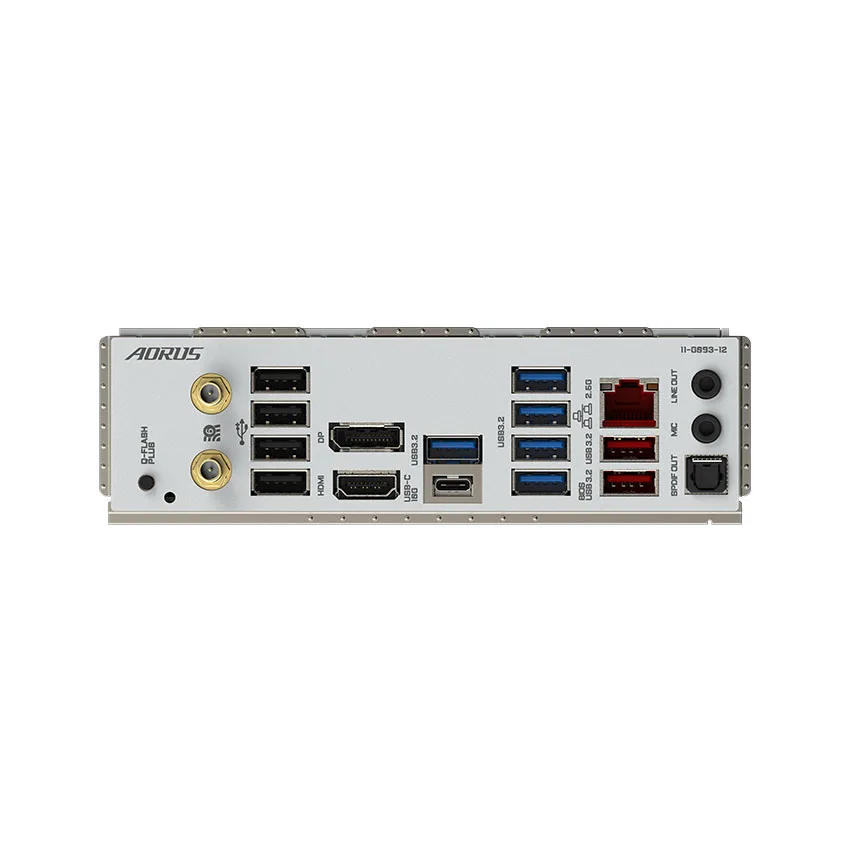

| Kết nối bảng phía sau |
1 x Q-Flash Plus button2 x SMA antenna connectors (2T2R)jk1 x DisplayPort1 x HDMI port1 x USB Type-C® port, with USB 3.2 Gen 2 support2 x USB 3.2 Gen 2 Type-A ports (red)5 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port1 x optical S/PDIF Out connector2 x audio jacks |
| Điều khiển I/O |
iTE® I/O Controller Chip |
| Theo dõi phần cứng |
Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control |
| BIOS |
1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Tính năng duy nhất |
Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash Plus |
| Gói phần mềm |
Norton® Internet Security (OEM version)LAN bandwidth management software |
| Hệ điều hành |
Support for Windows 11 64-bitSupport for Windows 10 64-bit |
| Hệ số khuôn |
Micro ATX Form Factor; 24.4cm x 24.4cm |
